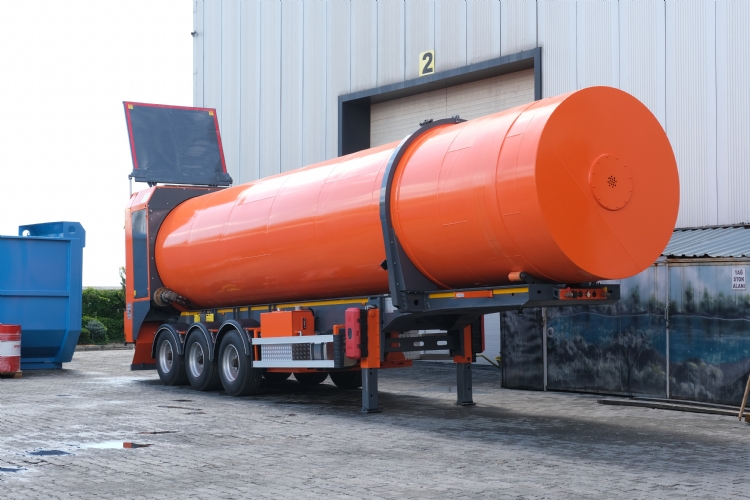

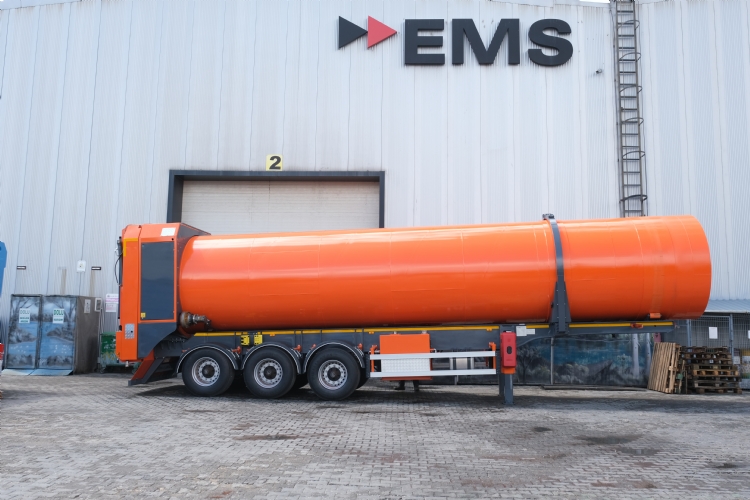

The Roundpres rotopres is a continuously compacting garbage truck. A massive rotating drum compacts and stores the garbage.
The outer edge of the drum acts as the loading hopper, and paddles on the drum convey the waste around an auger of decreasing pitch until it is small enough to be forced through a small ring-shaped gap between the drum and the auger, where it then enters the main section of the drum, which has helically shaped internal paddles which move the now-crushed waste towards the front of the vehicle.rotopres
When emptying the drum, the direction of rotation is reversed.

DIMENSIONS

Vehicle length: 6,000 – 13,600 mm
Vehicle height: 3,900 mm
Width: 2,490 mm
Capacity: 12,000 kg – 35,500 kg
Axle capacity (registration): 3x9,000 kg / 3x12,000 kg
King pin load (registration): 11,500 kg
Unladen weight (base 5 mm, sides 4 mm): 12,000 kg – 14,200 kg (±3%)
Axles: 3x9 – 3x12 ton, single tires, air suspension
Tires & Rims: 6 tires and rims, size 385/65R 22.5
ABS–EBS Modulator: 2S2M EBS Modulator
Electrical system: 7-pin 24V lighting system compliant with ECE R48 regulation
Paint: After sandblasting, double-coat epoxy primer + double-coat full acrylic oven-baked paint
Main Body: Strenx® 700MC material, thickness 4 mm and 6 mm
Drive gear and rotation bearing bolted to the rear section of the cylinder
Front metal ring mounted on a tube over carrier wheels

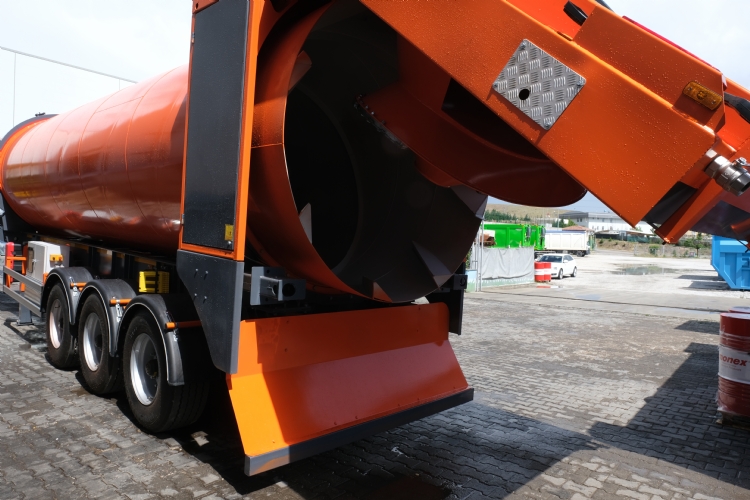

Cover opening: Filling and discharge covers open hydraulically

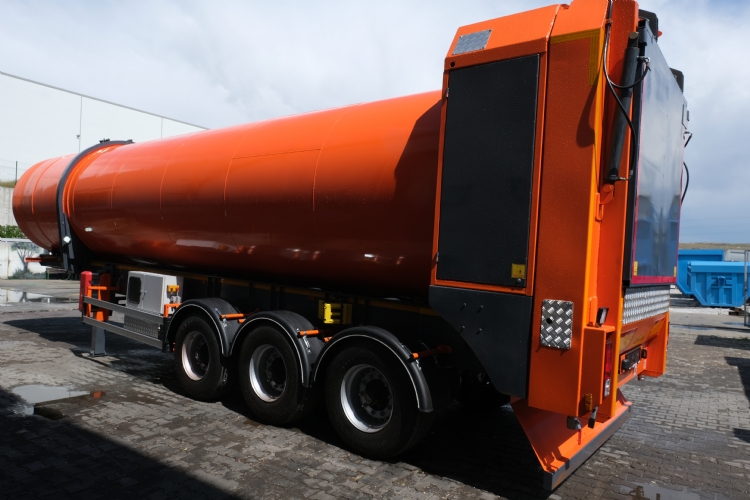

Rear Cover: Waste-contact surface of the rear cover is HARDOX or equivalent 400–450

CHASSIS

I-profile: Top and bottom flat bars 120x12 ST52 (S355), web plate 6 mm Strenx® 700MC
Chassis crossmembers: Main crossmembers 6 mm Strenx® 700MC, other crossmembers ST52 material
Bumper: Special-design, E-certified bumper
Side protection: Side protection compliant with ECE R73 regulation
King-pin: 2–3.5" flanged king-pin compliant with ECE R55 regulation
Hydraulic landing legs: Hydraulic legs each with 24-ton lifting capacity
