CONTAİNER SİLOBAS
MATERIALS CARRIED BY TANKS: Silica sand – Cement – Calcite - Soda – Dolomite – Flour – Semolina –Bentonite – Ashes – Lime – Coal powder – Rockwool and various powder materials.
TECHNICAL SPECIFICATIONS
Compressor tank: 4 mm ST 37 Ereğli steel plate, 5 mm dished heads
Design: Container type (20-foot container)
Discharge valve: 1 piece
Paint: Sadolin 118 DYO automotive paint, according to your preference (color on request)
Air system: On the left side of the vehicle, ball valves and check valves on both sides, safety pressure valve with top air vent
Manholes: 2 foldable covers, resistant to test pressure
Beams: 15 × 15 special drawn profiles, 5–6 mm
Lock beds: Special locks made from 20 mm and 15 mm steel, compliant with TS 1358 (in accordance with ISO 1161)
Dimensions: According to TCDD (Turkish State Railways) standards
Working pressure: 2 bar
Test pressure: 2.5 atmospheres, high-pressure water test
Walkway: Full-length chequered (patterned) steel plate with guardrail
Capacity: 26 m³, weight 3000 kg
Note: Dimensions are valid for 30 m³

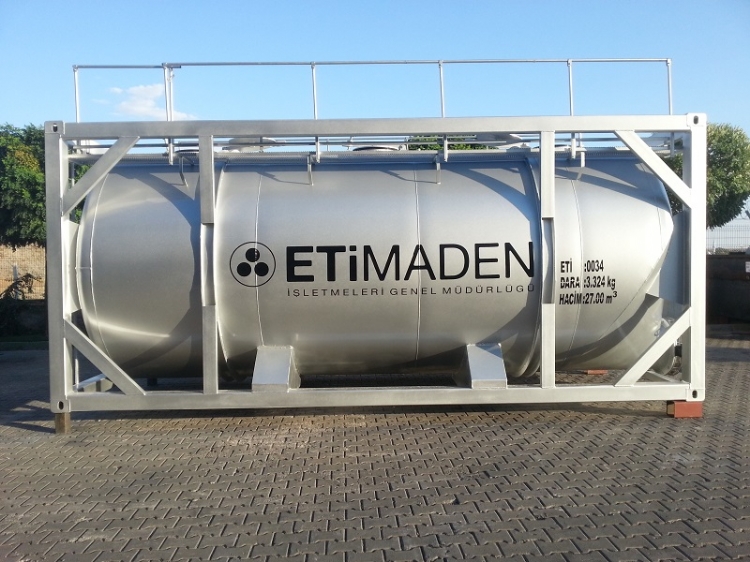

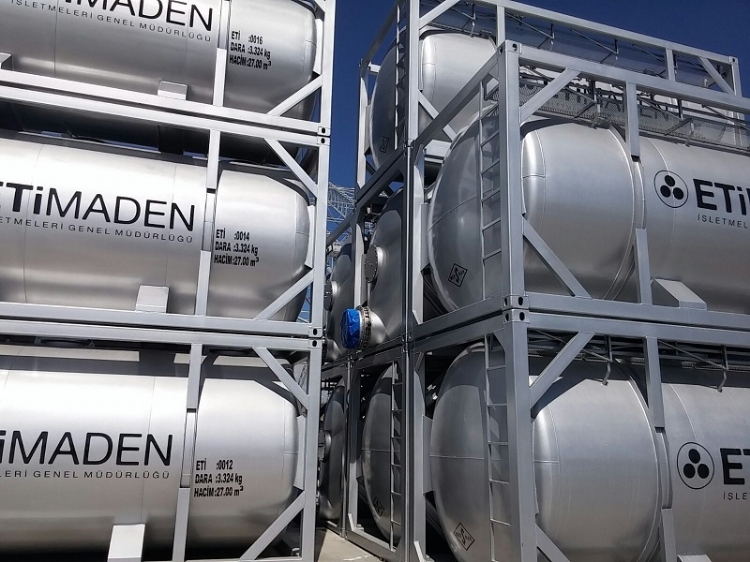

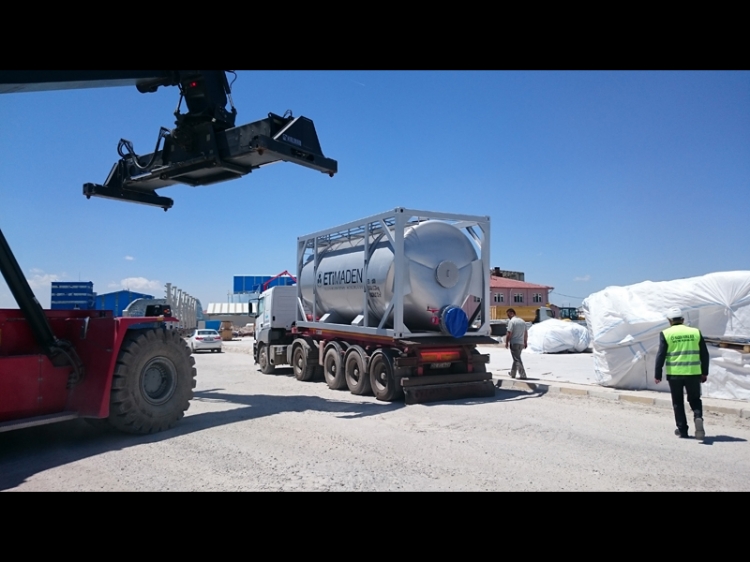

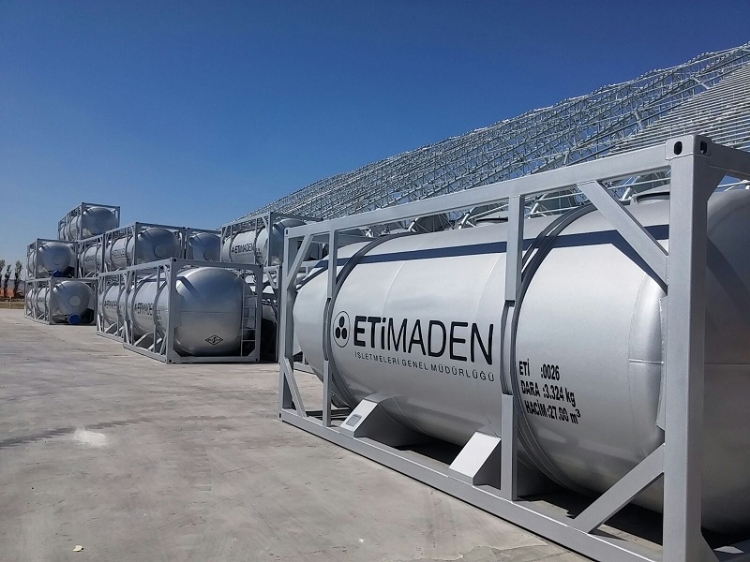

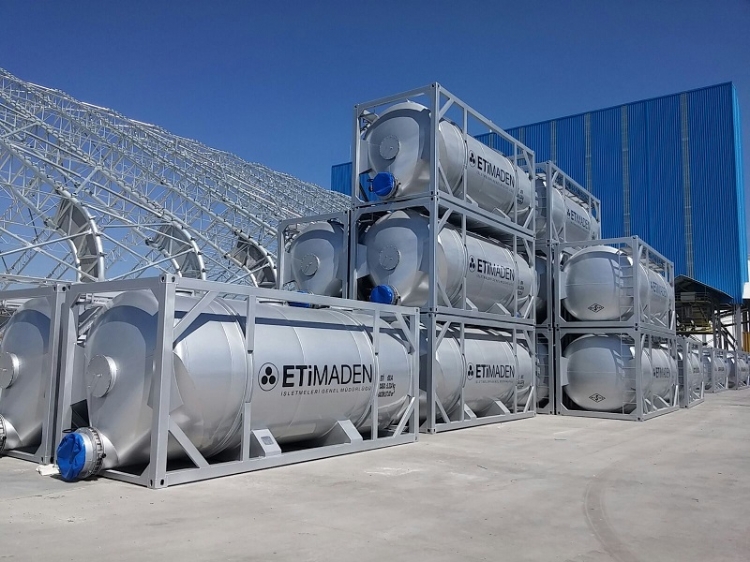

Product Images
