TECHNICAL SPECIFICATIONS

Work Capacity (Depending on Feed)

• Corn stalk, corn cob, greenhouse waste, cotton stalk and similar agricultural wastes (t/h): 10–25 tons

• Branches, pruning waste, vineyard canes, firewood/logs (t/h): 15–20 tons

• Cover boards, carpentry waste, nailed / non-nailed pallet waste (t/h): 15–20 tons

• Chipboard waste, MDF waste, tree bark (t/h): 15–25 tons

• Roots (must be pre-cut): 8–16 tons

• Books, reels, rolls (mesura) (t/h): 10–20 tons

• Cardboard, boxes (t/h): 10–20 tons

Knife System

• 20 cutting knives + 2 fixed knives

• Knives are Hardox 550 (55 HRC)

Knife Life

• Between 1,950 tons and 4,000 tons, depending on the type and cleanliness of the material being shredded

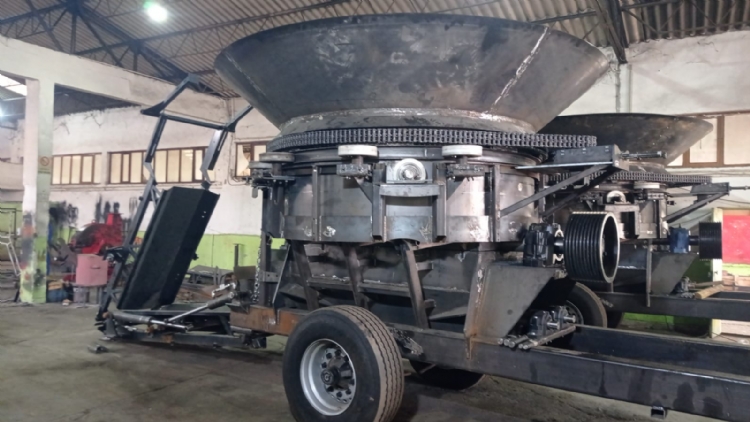

Hopper Rotation System

• Unit motor: 7.5 kW / max 40 hp pump + 2 × 500 cc hydraulic motors

• Rotation via geared chain system, centered with castamide (engineering plastic) wheels

Rotor Specifications

• Rotor diameter: 650 mm

• Rotor length: 2,100 mm

Stress / Load Management

• Feed rate slows down when high material load is detected

• If the hopper jams due to hard-to-rotate material, it automatically reverses

• For certain materials, hopper rotation alternates left/right with a time-controlled system

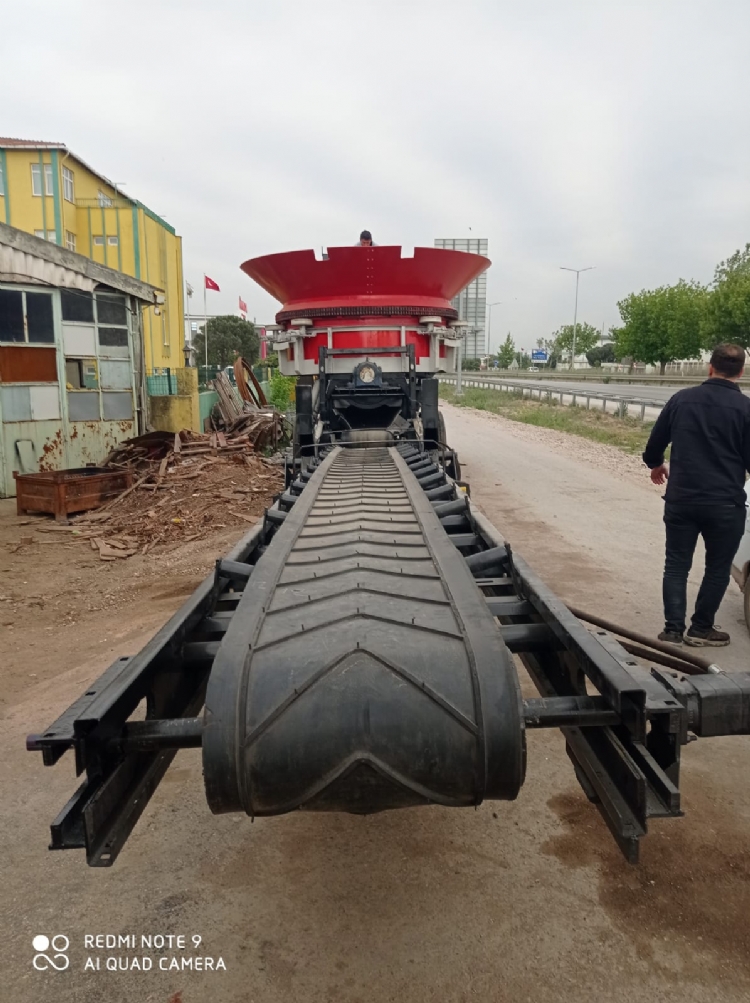

Discharge Conveyor 1

• 90 cm × 1,000 cm rubber belt

• Closed tunnel-type housing to prevent dust and light materials from escaping

• 5.5 kW geared electric motor

Discharge Conveyor 2

• 80 cm × 200 cm rubber belt

• Closed tunnel-type housing to prevent dust and light materials from escaping

• 3 kW geared electric motor

Machine Weight

• 13,500 kg
